AUTOMATIC BEAM SAW

  • Ideal solution for the advanced woodworker and the small woodworking companies. Single-blade beam saw controlled by PC/PLC control system, designed to cut to size solid wood panels, chipboards, MDF panels, multilayer panels, plywood panels and fiber panels

  • :SIGMA IMPACT 110
  • :Ý
  • :12 tháng
  • :Call
  • :

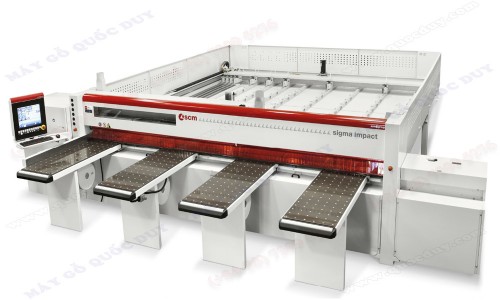

AUTOMATIC BEAM SAW

Model: SIGMA IMPACT 110

may-cua-panel-sigma-impact-110
Features

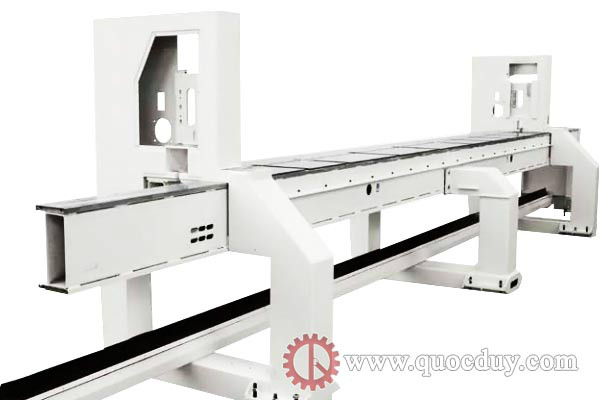

THE BASE: THE VERY BEST RESULTS ARE GUARANTEED
Solid and compact machine base ensures precise carriage movements by providing maximum cutting quality for many years.

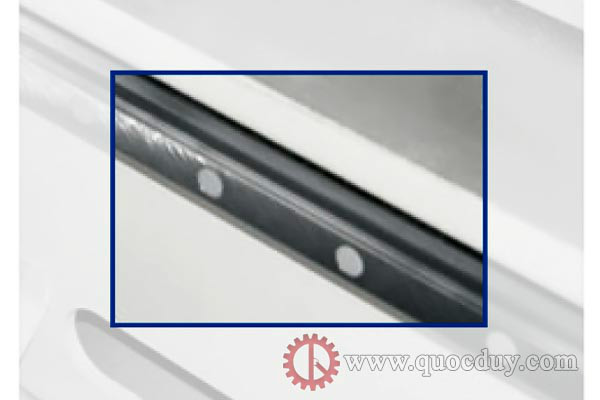

HIGH TECHNOLOGY
The structure quality, together with the possibility of utilising prismatic guides, improves and facilitates the sliding of the saw carriage(opt.) during the cutting phase and provides enhanced performance.

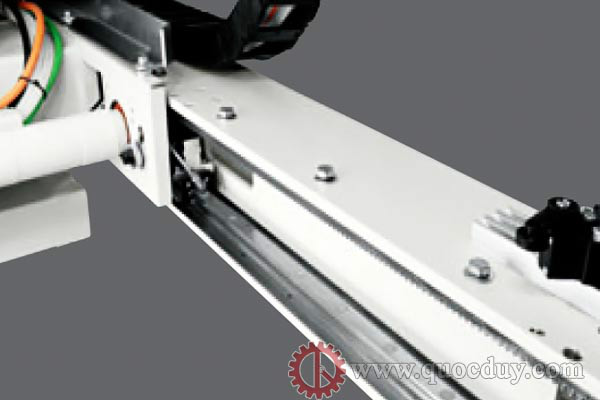

PRISMATIC GUIDES FOR THE PUSHER: SILENT AND EFFICIENT
The use of prismatic guides with recirculating ball bushings on the sliding of the pusher reduces friction and material wear so guaranteeing the best working quality and speed (opt.)

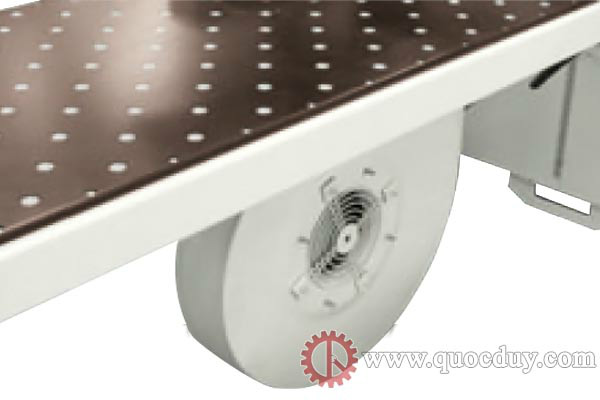

HIGH EFFICIENCY WORK TABLE: OPTIMAL PANEL SLIDING IN ALL WORKING CONDITIONS
The high number of air cushion outlets together with a fan with increased motor power ensures a constant and effective ease of movement of panel stacks of every type and weight (opt.).

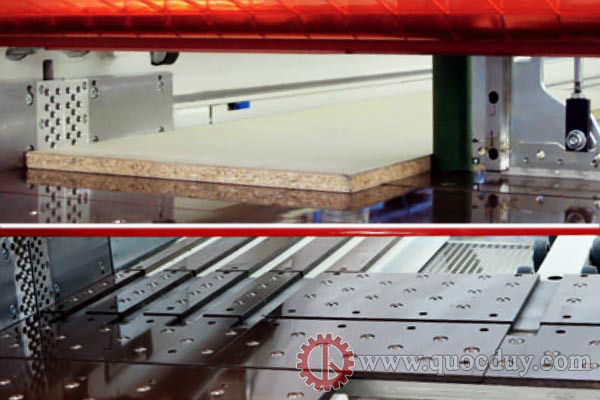

AUTOMATIC SIDE ALIGNMENT DEVICE: THE BEST PRECISION FOR CROSS CUTTING
The availability of many versions with pneumatic or powered movement with strokes up to 2200 mm allows satisfaction of all types of panel, equal and repeated cuts and soft materials. Therefore the cut precision and time-saving is always guaranteed.

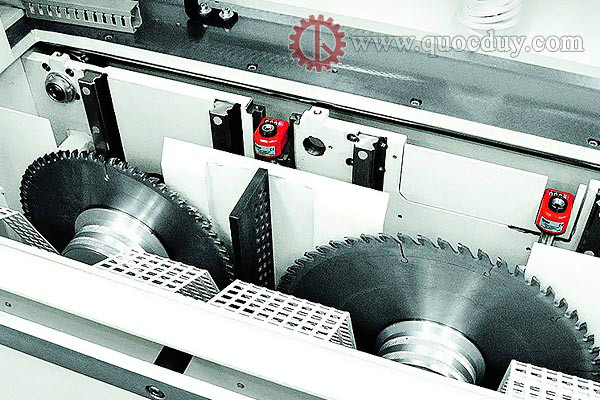

RAPID BLADES LOCKING/UNLOCKING:MACHINING SAFETY IN A REDUCED TIME.
This system provides safe and constant blades locking and unlocking due to the pneumatic system and it minimises the stand-by times for blade changeovers. The use of the selector (option) makes the operation even easier and immediate.
Specifications
Max. Cutting length
3200 mm
Max.Cutting depth
115 mm
Worktable height
950 mm
Saw carriage variable speed
6-60 m/min
Pusher variable speed
0-55 m/min
Main blade motor S6 - 40%
7.5 kw
Scoring unit blade motor 50 Hz
1.5 kw
Main blade/scorer speed
3900/6300 rpm
Main blade/scorer blade diameter
Ø400/Ø160 mm
Main blade/Scoring blade shaft diameter
Ø80/Ø55 mm
No.of clamps
6
Requested operating pressure
7
Exhaust outlet diameter
Ø150mm x 3 + Ø120mm x 1
