AUTO RAISED PANEL DOOR MACHINE

  • The door templates includes one panel arch and four matching rails for different door size. By simply raising or lowering the roller to the required template level, an arched panel or rail can be produced.

  • :LH-1000AT/LH-1400AT/LH-2200AT
  • :Taiwan
  • :12 month
  • :Call
  • :

AUTO RAISED PANEL DOOR MACHINE

Model: LH-1000AT/LH-1400AT/LH-2200AT

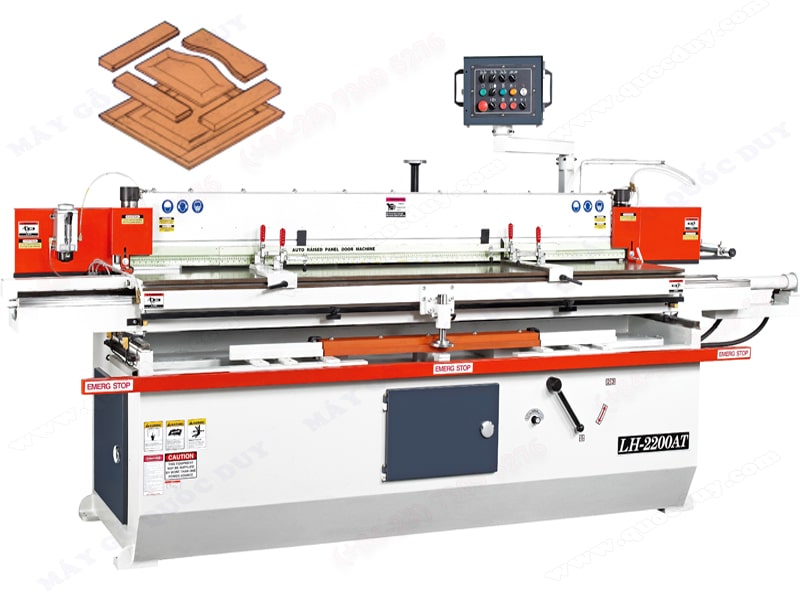

may-chep-hinh-panel-cua-LH-2200AT
Features

- Door templates:

+ The door templates includes one panel arch and four matching rails for different door size. By simply raising or lowering the roller to the required template level, an arched panel or rail can be produced.

- Stackable spindle:

+ Stackable spindle is located at three different cutter locations. At the touch of a switch the cutter can be fixed to spindle using the upper and lower screw, thereby elimination set up time.

-  All 5 components of a raise panel door or cabinet door can be produced in less than 5 minutes by 1 operator!

Specifications
Model
LH-1000-AT
LH-1400-AT
LH-2200-AT
Main Spindle Driving Power
10 HP
10 HP
15HP
Pump Motor
1 HP
1 HP
1HP
Main Spindle Revolving Speed
7,000 RPM
7,000 RPM
7,000RPM
Main Spindle Dia.
Ø 30 mm
Ø 30 mm
Ø 40 mm
Driven Wheel Dia.
100 mm
100 m/m
100 m/m
Max. Working Length
1000 mm
1400 mm
2200mm
Machine Size
1950x950x1450mm
2350x950x1450mm
3500x950x1450mm
Packing Size
2030x1000x1600 mm
2450x1000x1600mm
3930x1250x1780mm
N.W.
950 kg
1020 kg
1520 kg
G.W.
1150 kg
1220 kg
1720 kg
