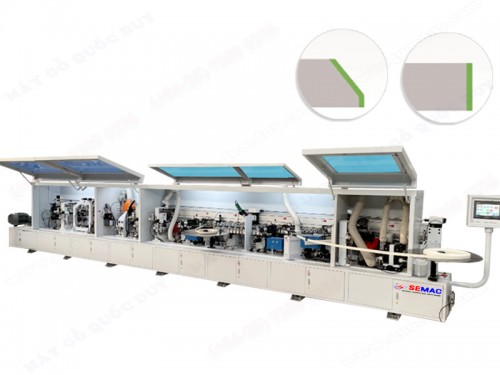

AUTO INCLINATION EDGE BANDING MACHINE
AUTO INCLINATION EDGE BANDING MACHINE
Model: PRO ARC 3
|
Machine functions
|
|
|
1. Pre-milling at straight surface
2. Pre-milling at inclination surface
3. Panel pre-heating

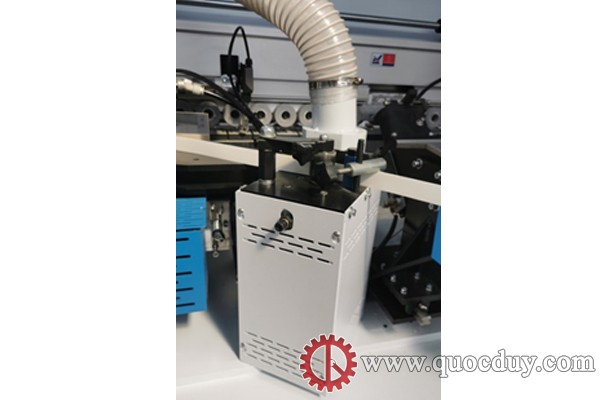

4. Grooving on tape
5. Gluing at inclination surface 1
6. Gluing ports at straight surface 2
7. Gluing ports at straight surface 3
8. Edge banding tape pre-heating
9. Tape pressuring

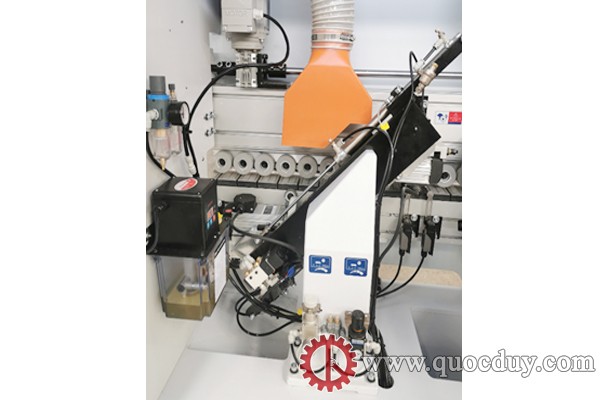

10. End cutting

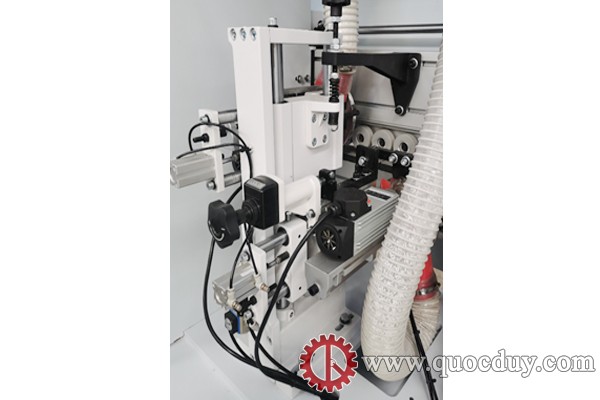

11. Rough trimming

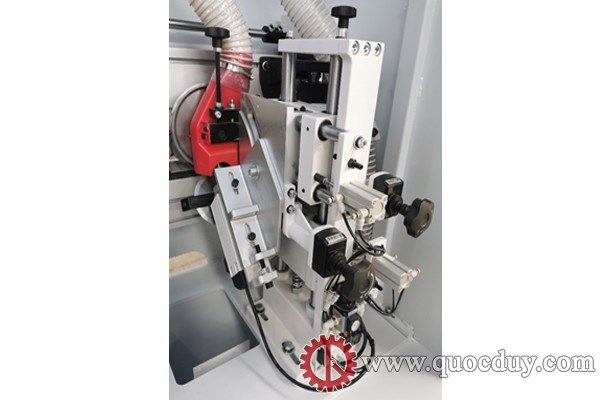

12. Fine trimming
13. Corner rounding
14. Scraping
15. Cleaning
16. Flat scraping
17. Buffing
|
|
|
Specifications
|
|
|
Panel thickness
|
:10-60 mm
|
|
Edge banding tape thickness
|
: 0.4-3 mm
|
|
Panel width
|
: ≥ 80 mm
|
|
Working speed
|
: 12-20 m/phút
|
|
Pre-milling at straight surface
|
:1.8 kw x 2
|
|
Pre-milling at inclination surface
|
:4 kw
|
|
Gluing motor power
|
:0.75 kw x 2
|
|
Heating power
|
:1.5 kw
|
|
Ending trimming motor power
|
:0.37 kw x 2
|
|
Trimming on the bottom rough
|
:0.75 kw x 2
|
|
Trimming above the sub-chimpanzee
|
: 0.75 kw x 2
|
|
corner trimming
|
:0.37 kw x 2
|
|
pre-miling
|
:0.37 kw x 2
|
|
Belt motor power
|
:3.7 kw
|
|
Working air pressure
|
:0.7 Mpa
|
|
Weight
|
:3000 kg
|
|
Machine size
|
:9800 x 900 x 1600 mm
|
