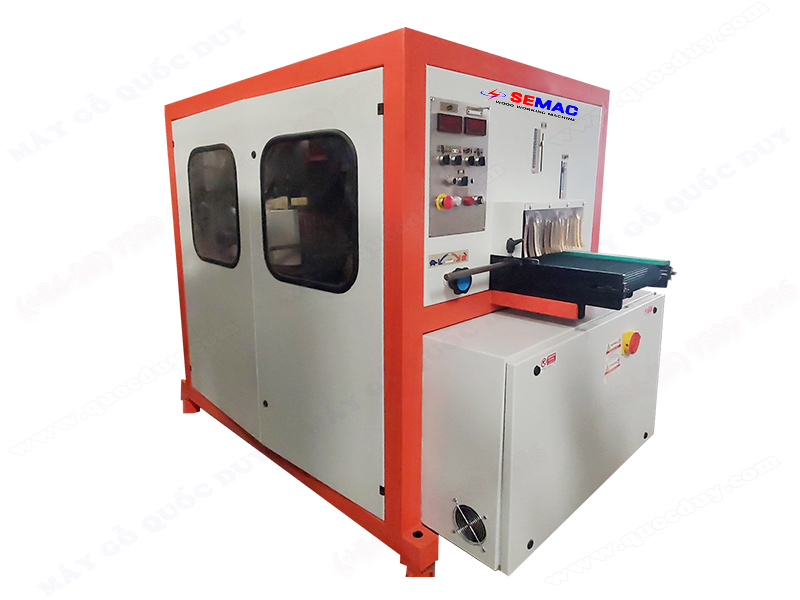

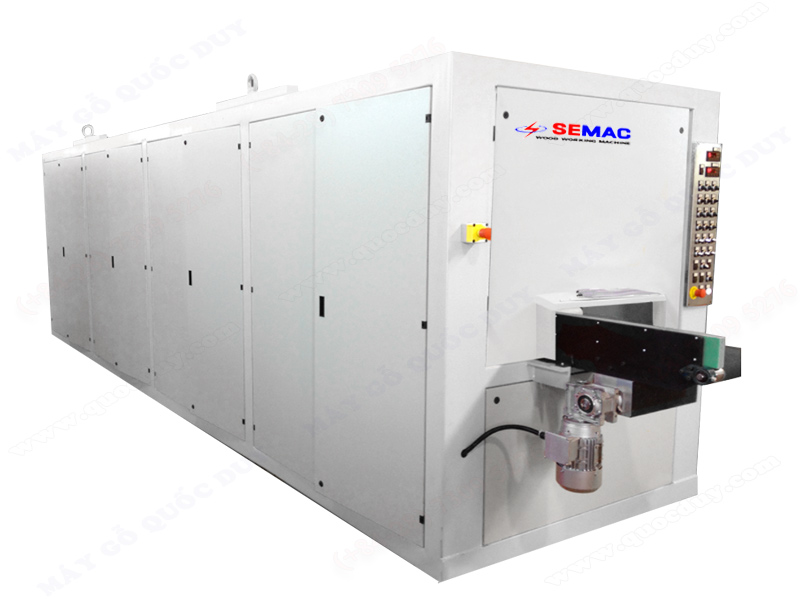

4 SIDED BRUSH SANDING MACHINE
4 SIDED BRUSH SANDING MACHINE
Model: SM 300W8
|
Features
|
|
|

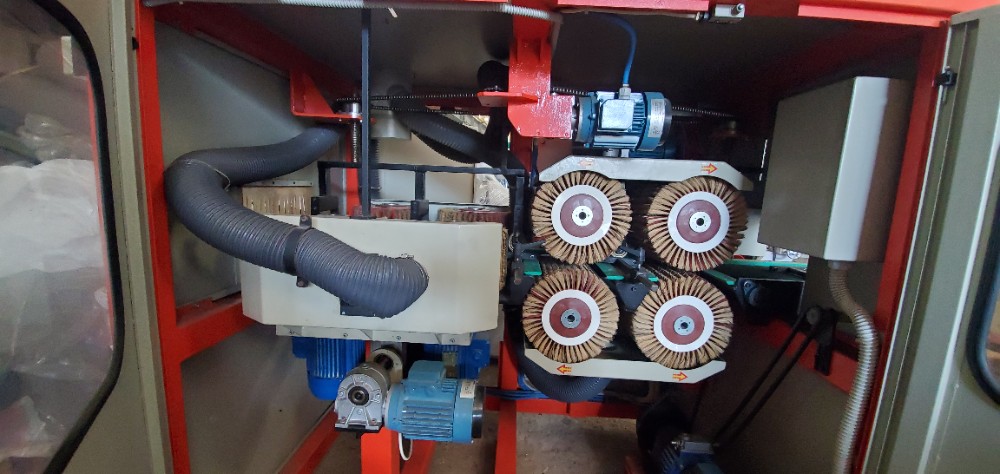

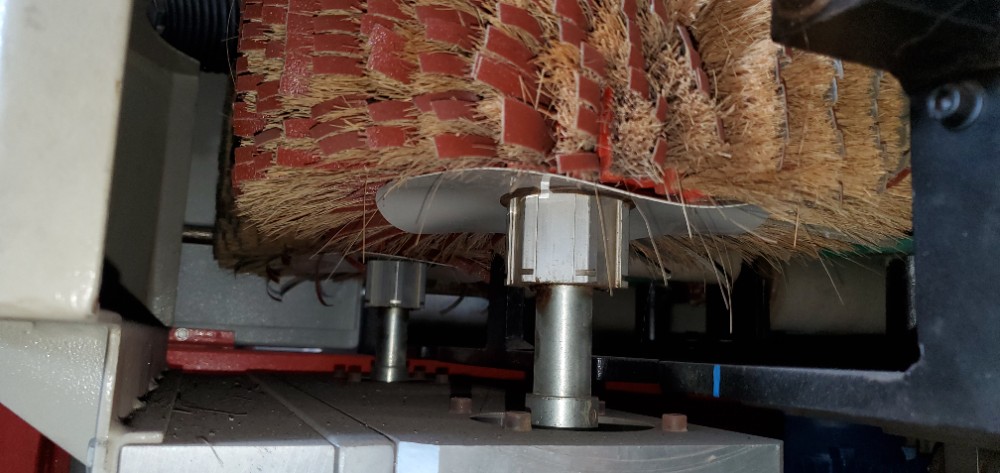

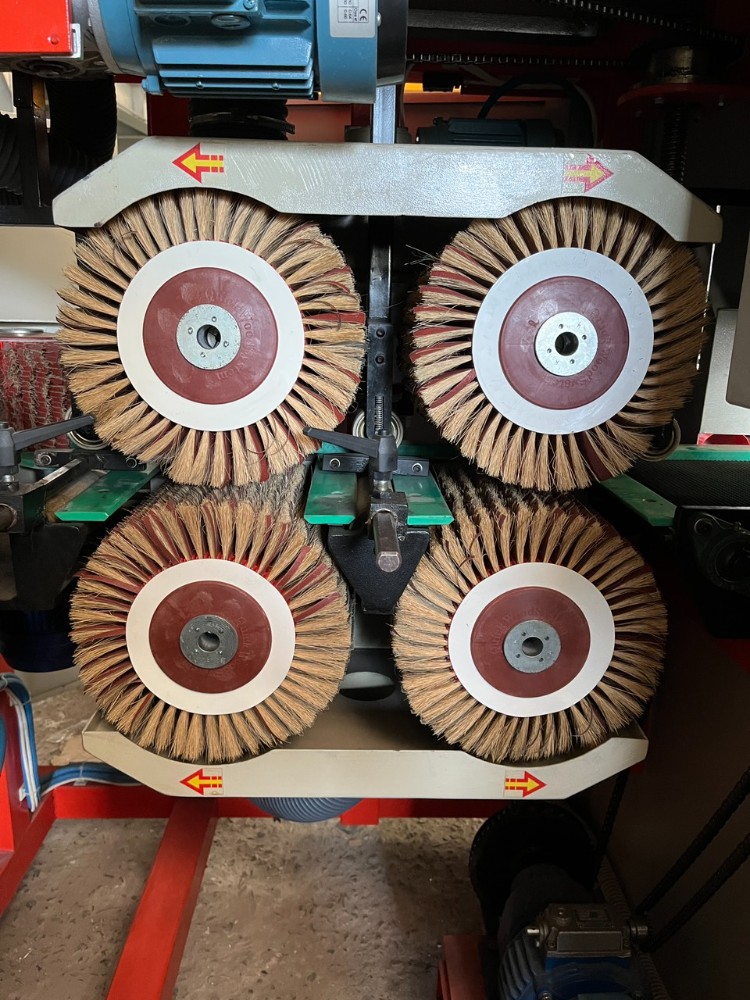

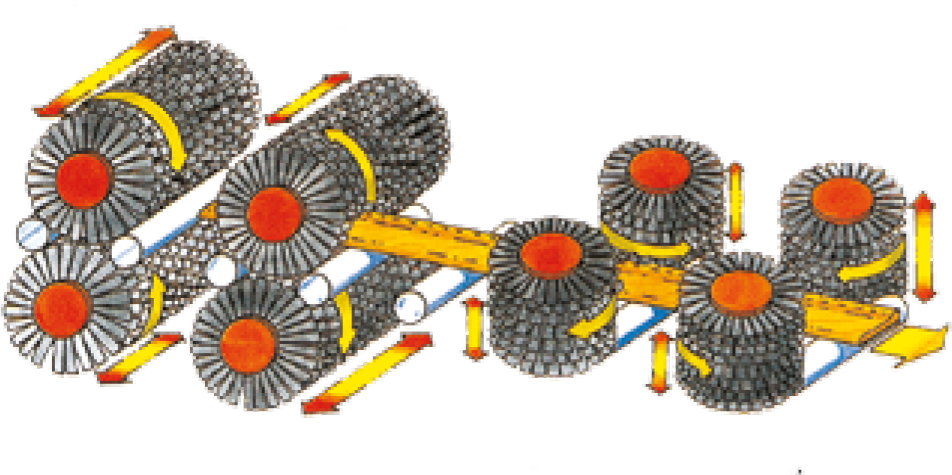

- 8 or more brushes arranged at 360 ° with respect to the workpieces

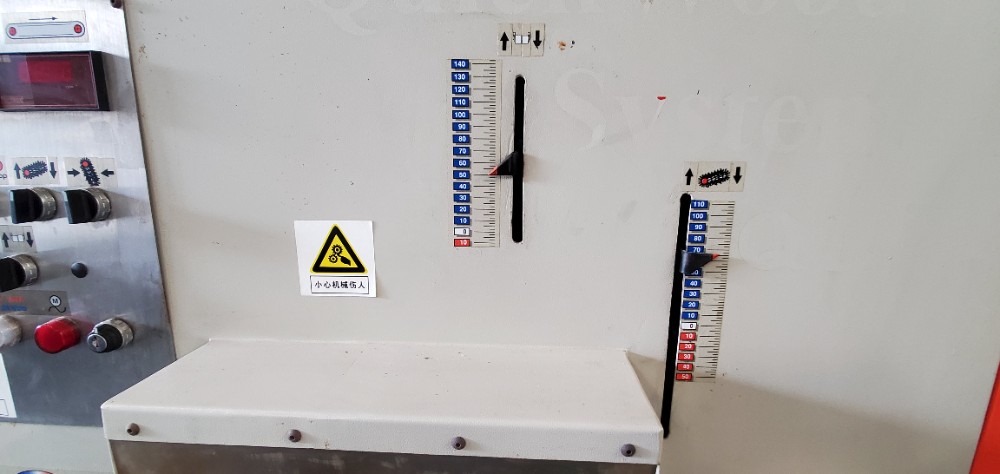

- Adjustable inclination for the profile step
- QRC module for the superfinishing of the flat parts in view

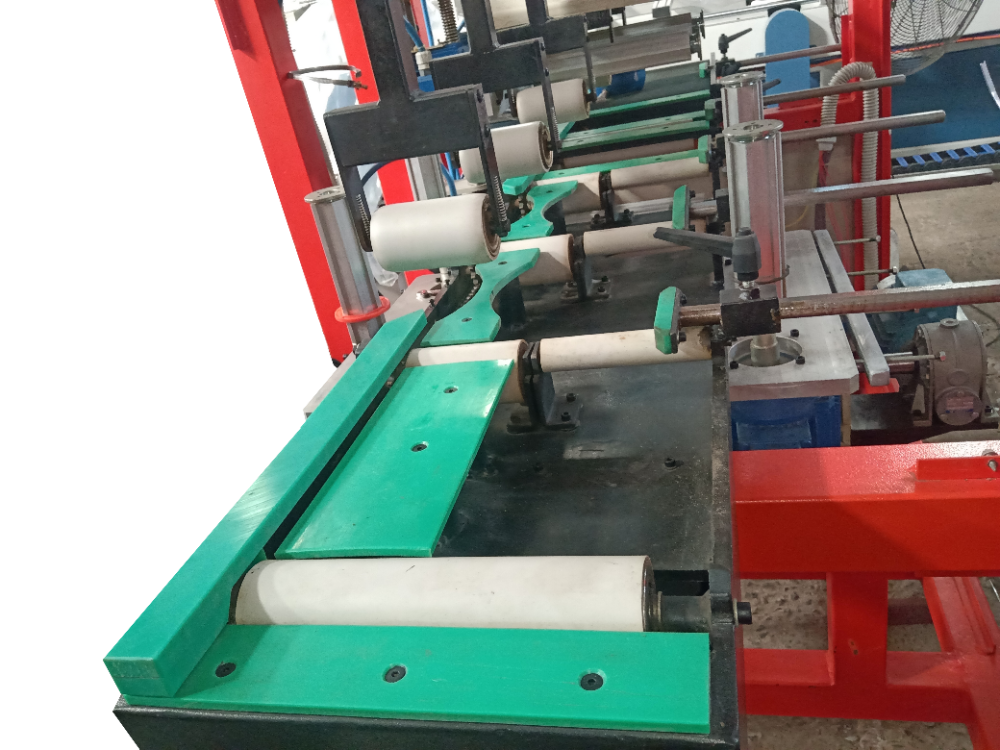

- Automation for translation and return of workpieces
- Intervention on all sides at the same time

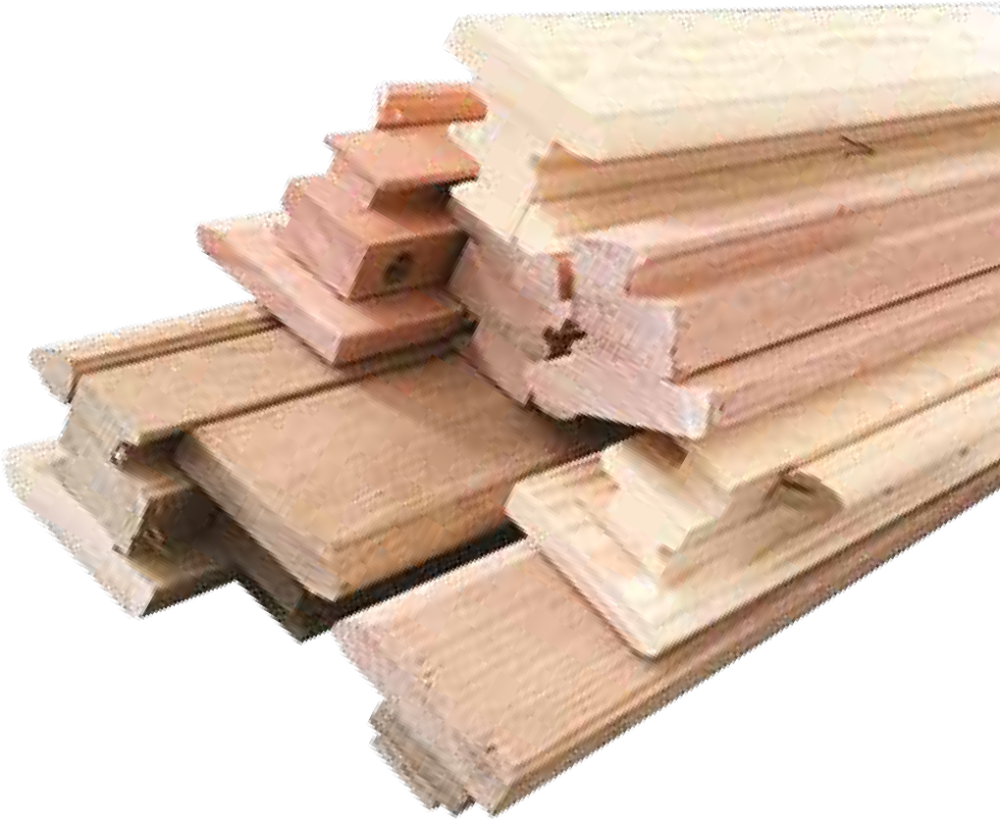

- Excellent finish even in 90 ° profiles
- High Productivity

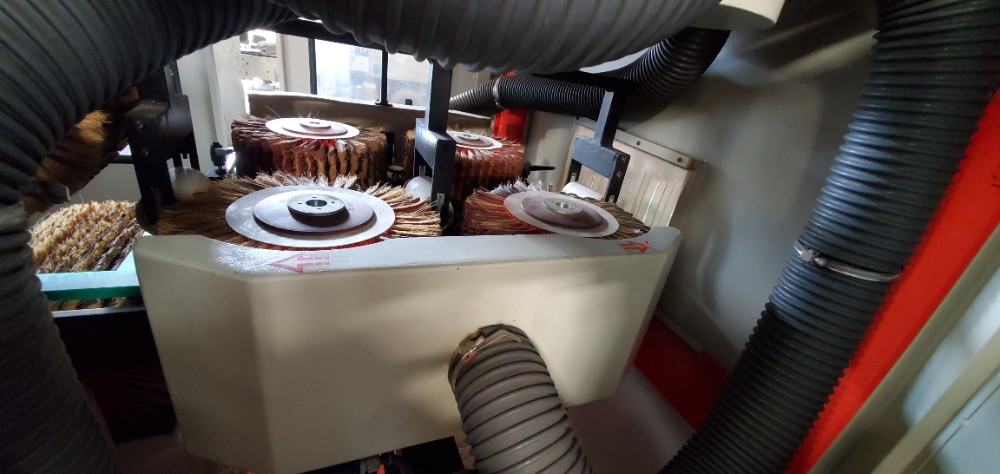

- Fully protected and aspirated working environment
|
|
|
Specifications
|
|
|
Max.Working thickness
|
: 100 mm
|
|
Max.Working width
|
: 250 mm
|
|
Min.Length of workpiece
|
: 380 mm
|
|
Max.Length of workpiece
|
: Unlimited
|
|
Feed speeds
|
: 5-25 m/Minute
|
|
Spindle speed
|
: 200 - 1100 rpm
|
|
Spindle lenght horizontal
|
: 285 mm
|
|
Spindle lenght vertical
|
: 150 mm
|
|
Number of spindles
|
: 8
|
|

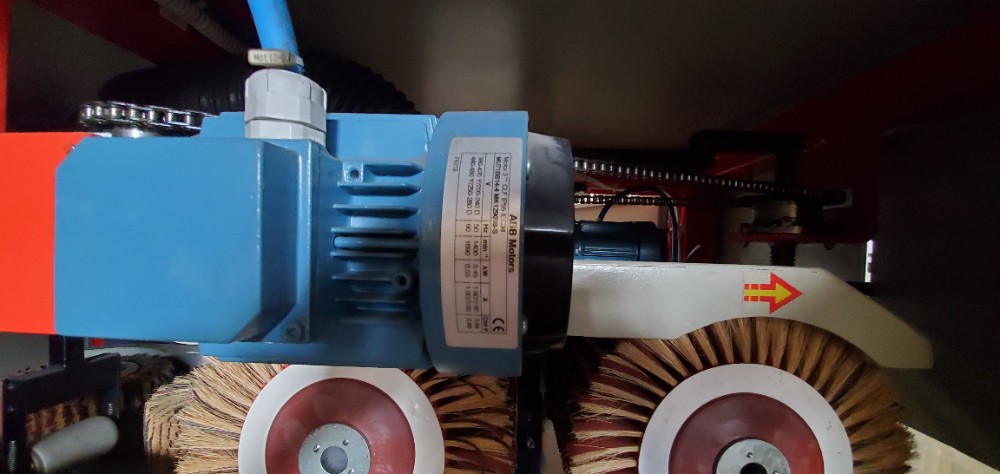

Spindle motor horizontal
|
: 4 x 0.55 kw
|
|
Spindle motor vertical
|
: 4 x 0.37 kw
|
|
Conveyor motor
|
: 0.55 kw
|
|
Shaft lifting motor
|
: 2 x 0.45 kw
|
|
Dust collection duct
|
: 90 mm x 2 pcs
|
|
Exhaust capacity
|
: 3500 m³/h
|
|
Machine
|
: 2400 x 1200 x 1700 mm
|
|
Net weight
|
: 850 kg
|
|
