4 SIDE PLANER AND MOULDER
4 SIDE PLANER & MOULDER has high productivity, high precision and labor cost cutting
- :GH-623
- :Taiwan
- :12 month
- :Call
- :
 |  |

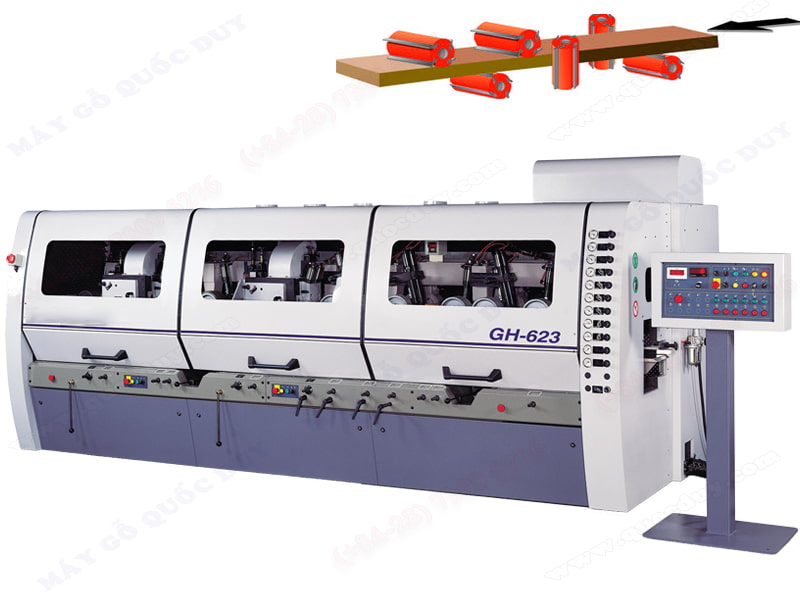

4 SIDE PLANER & MOULDER
Model: GH-623
| Specifications | |
|
Working width
|
20 - 230 mm
|
|
Working thickness
|
7 - 160 mm
|
|
Feed speed
|
12 - 120m/min
|
|
Spindle speed
|
6000 rpm
|
|
Spindle diameter
|
Ø50 mm
|
|
Axial adjustment range of vertical spindles
|
60 mm
|
|
Axial adjustment range of horizontal spindles
|
30 mm
|
|
First bottom spindle
|
Ø160 - 210 mm
|
|
Right/Left vertical spindle
|
Ø160 - 230 mm
|
|
Top horizontal spindle
|
Ø160 - 250 mm
|
|
Bottom horizontal spindle
|
Ø160 - 250 mm
|
|
Top feed rollers diameter
|
Ø200 mm
|
|
Feed roller width
|
2 x 50 mm
|
